Using the OC Monitor - Introduction
This section describes the OC Monitor main display, the metrics it provides about your Coherence cluster, and Monitor navigation. This section includes:

OCM Main Display: This section describes indicators in the main OC Monitor display.
OCM Navigation: This section describes the general operation of the OC Monitor user interface.

OCM Main Display

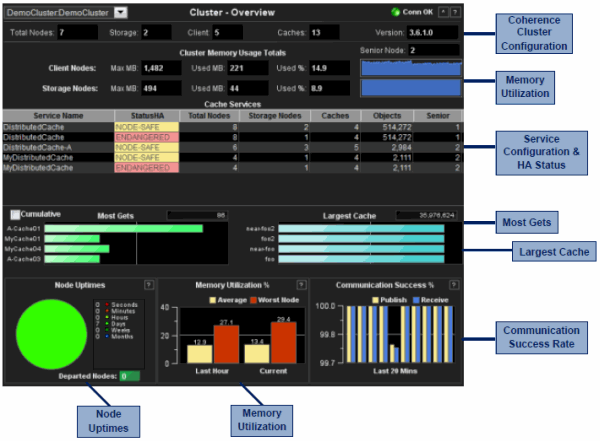

The OC Monitor main display, Cluster - Overview, enables you to quickly assess the configuration, activity and health of all of your Coherence clusters. Select a cluster from the Cluster drop-down menu. The following figure describes the cluster indicator areas.

The OCM main page reports on the following areas:

Coherence Cluster Configuration: Get the cluster name and total counts of members (JVMs) in each cluster. Counts include storage nodes, client nodes (non-storage nodes), the total number of caches and the version of Coherence used in the cluster.
Memory: Get memory information, including heap size and used memory totals for all storage and client (non-storage) nodes. Also see the total percent memory usage for storage and client nodes. A blue-colored recent memory usage trend chart is displayed for storage nodes and another for client nodes.
Service Configuration & HA Status: Check the high-availability (HA) status for all Coherence protocol-related cache services used by applications in the cluster. The StatusHA column indicates whether primary and backup objects are distributed for surviving machine failure or storage node failure. The most secure status is MACHINE-SAFE which indicates that an entire host could fail and all data could be recovered. NODE-SAFE indicates that a storage node could fail and data could be recovered, but data could be lost with a host failure. ENDANGERED indicates that the loss of a single storage node could result in data loss in the cluster. Note that Coherence does not track whether enough free memory is available for surviving machine or storage node failure without data loss.

Also, see the number of caches in each cache service, the number of storage nodes participating in each cache service, the number of objects in each cache service, the senior member for the cluster and the senior members for each service. Click a cache service to view details in the Single Service - Summary display.

Most Gets: Check on your four busiest caches (in terms of the number of gets reported in the last measurement). Mouse-over the bar charts to see the most recent metric for each cache. Select the Cumulative box to display the total number of gets since the cluster started (or since statistics were last reset). Statistics from the most active cache are displayed in the upper right field.
Largest Cache: Check on your four largest caches (in terms of memory usage). The largest cache’s current size, in units, is displayed in the upper right field. Mouse-over the bar charts to see the most recent metric for each cache. Units are user defined in your cache configuration file. Typically units are set to either the number of objects or the number of bytes consumed by objects.
Node Uptimes: Assess cluster stability. View how long nodes in the cluster have been members of the cluster. The OCM looks at the start time of every node in the cluster, determines how much time the node has been part of the cluster and categorizes the nodes into seconds, hours, days, weeks or months. Typically, if a node leaves the cluster as the result of a fault condition, the node subsequently rejoins, appears as a “younger” node, and is placed in the seconds, minutes or hours category. This metric can be an important indicator of cluster instability. If a node leaves the cluster and fails to rejoin, the node is subsequently shown in the Departed Nodes box.
Memory Utilization: Determine whether cluster memory usage has been increasing over the last hour and by how much. These bar charts are capacity indicators as well as garbage collection indicators. The memory usage is shown for the most recent data collection, and as an average for the last hour. The red bar chart is for the node in the cluster with the highest memory use, and the yellow bar shows memory use averaged across the whole cluster.
Communication Success Rate: Determine whether packet loss is occurring. The bar graph uses pairs of bars in which one bar represents the publisher success rate and the other represents the receiver success rate. The bar charts are the most important indicator for any issue affecting cluster health or performance. The chart shows the TCMP publisher and receiver success rates for the last 20 minutes. The success rate is typically 99% or greater in healthy clusters. Publisher/Receiver failures (the inverse of success) indicate that packets sent between nodes are not being acknowledged within the timeout period (which is typically 250 ms). This is typically the result of a node being unavailable due to garbage collection. However, there are many other possible causes as well (such as a network issue, a defective NIC card, a garbage collection issue, disk swapping, or a shortage of CPU on a single machine). Investigate further by clicking the bar chart to view details in the Cluster - Memory/Network Health display.

OCM Navigation
This section describes the general operation of the OC Monitor and the user interface. NOTE: Typically, it takes about 30 seconds after a server is started to appear in an OC Monitor display. By default, data is collected every 15 seconds, and the display is refreshed 15 seconds after that.

To access this information online select the ? button in the top right corner of any of the OC Monitor displays.

Navigation Tree

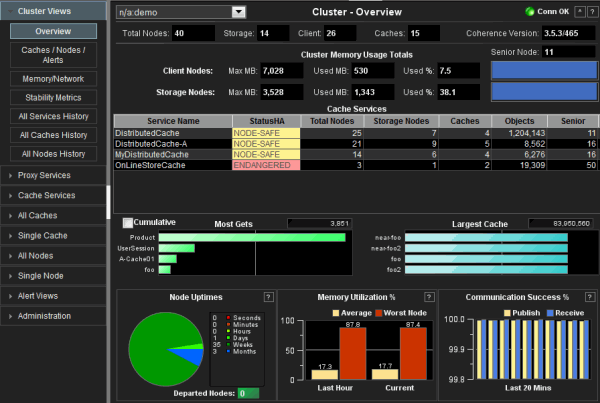

The OC Monitor navigation tree (in the left panel) is organized as follows:

Cluster Views: Use these displays to assess Coherence cluster-level performance and utilization.
Proxy Services: Use these displays to assess proxy service performance metrics, identify overloaded proxy services and locate the extend client connection causing the issue.
Cache Services: Use these displays to assess cache service performance metrics across all nodes, verify load is distributed and identify nodes that are hot spots.
All Caches: Use these displays to assess performance and utilization of all caches in the cluster, verify load is distributed and identify nodes that are hot spots. Select a cache to view details for a specific cache in the Cache Summary display.
Single Cache: Use these displays to investigate performance, utilization and activity metrics of a single cache.
All Nodes: Use these displays to assess node-level performance and utilization in the cluster. Verify node CPU and memory utilization metrics, load distribution as well as packet failure/success rates for all nodes in the cluster. Select a node to view details for a specific node in the Single Node - Summary display.
Single Node: Use these displays to investigate performance and utilization metrics of a single node.
Alert Views: Use this display to view alert states and manage alerts for all nodes in the cluster.
Administration: Use these displays to perform OCM administrative tasks for nodes, caches, alerts and metrics.

Title Bar

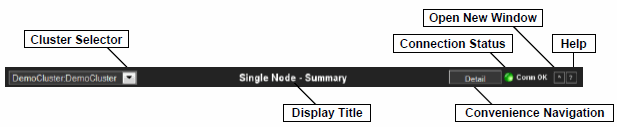

Each display shares similar title bar functionality, described below.

Cluster Selector	Select a cluster from the drop-down menu.

Convenience Navigation	Convenience navigation buttons enable you to toggle between the most commonly accessed displays from the current display. These buttons are not available on all displays, and differ from one display to another.

Connection Indicator	Conn OK	Indicates that one or more servers is delivering data.
	No Data	Indicates that one or more servers is found but no engines are delivering data.
	No Conn	Indicates that no server is found.

Open New Window	Open one or more instance of the same display. Each window operates independently, allowing you to switch views, navigate to other displays in the Monitor, and compare performance data.

Help	Links to the online help page for the current display.

Open Multiple Windows

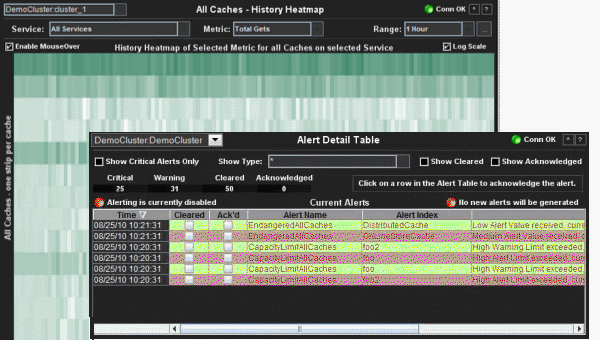

The following illustrates the usage of the Open New Window button. Typically, users have the Alert Detail Table display open in one window and another display, such as the All Caches - History Heatmap display, open in another window.

Tables and Sorting

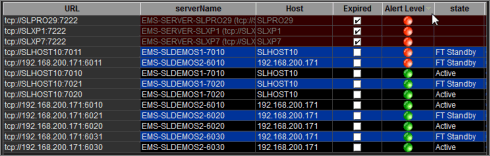

The following illustrates the usage of to sort table columns in alphanumerical order. In this example, the Alert Level column is sorted.

Mouse-over

The mouse-over functionality provides additional detailed data in a popup window for trend graphs and heatmaps.

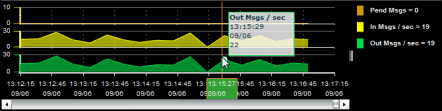

The following illustrates mouse-over functionality in a trend graph object. In this example, when you mouse over the Out Messages trend graph, the message out rate is shown at 60 second intervals throughout the graph.

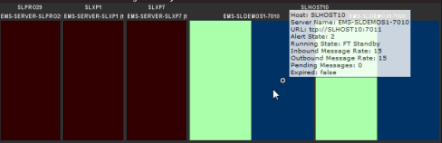

The following illustrates mouse-over functionality in a heatmap object. In this example, when you mouse over a host, details are shown such as message inbound and outbound rates, and the number of pending messages.
