Oracle Coherence Monitor

User Guide



Using the Monitor - Proxy Services
Proxy Services displays present detailed proxy server performance metrics for the cluster. Use the Proxy Services displays to quickly identify overloaded proxy services and locate the extend client connection causing the issue.

Proxy Services performance metrics include: CPU%, Requests, Request Average Duration, Request Pending Count, Task Backlog and Active Threads.

NOTE: Click the button to view the current display in a new window.

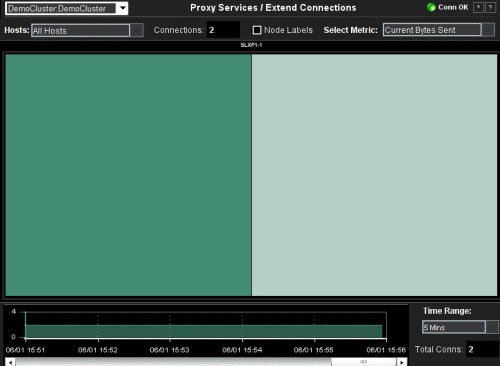

Proxy /Extend Overview
 Heatmap shows the extend connections and a trend graph shows the total connections and total bytes transferred across all proxy services for the selected host or hosts.

Cluster Select a cluster from the drop-down menu.

Hosts Select a host or hosts to display.
Connections The number of extend clients connected to the selected host or hosts.
Node Labels Select to view node locations.
Select Metric Total Bytes Sent Total number of bytes sent by the selected proxy since the proxy joined the cluster.
Current Bytes Sent Total number of bytes sent by the selected proxy in the time range specified.
Total Bytes Received Total number of bytes sent by the selected proxy since the proxy joined the cluster.
Current Bytes Received Total number of bytes received by the selected proxy in the time range specified.
CPU % The average percent CPU utilization for the selected proxy.

Time Range Select the time range for the trend charts range varying from 2 Minutes to Last 7 Days, or display All Data.
Total Connections The number of extend clients connected to the selected proxy.

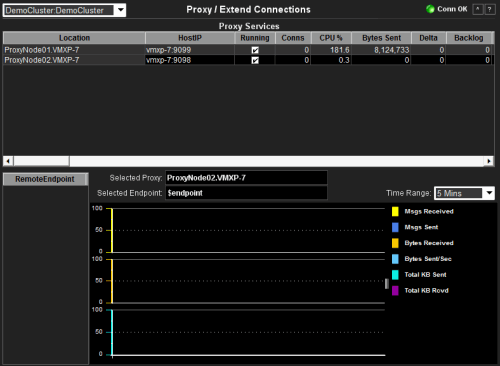

Proxy/Extend Connections
Table shows proxy services data, including connections, CPU usage and bytes sent and received, and a trend graph displays messages and bytes sent and received for the selected remote endpoint.

The table data is the result of joins of metric from the following Coherence MBeans: Service and ConnectionManager. For details on attributes of these MBeans go to: http://download.oracle.com/otn_hosted_doc/coherence/350/com/tangosol/net/management/Registry.html.

Cluster Select a cluster from the drop-down menu.

Proxy Services Location Identifies the proxy service and the host it resides on.
HostIP The IP address of the host where the proxy service resides.
Running Indicates that the proxy service is running when selected.
Connections The number of extend clients connected to the selected host or hosts.
CPU % The average percent CPU utilization for each proxy service in the cluster.
Bytes Sent The number of bytes sent by the proxy service since the proxy service joined the cluster.
Delta The number of bytes sent by the proxy service since the last update.
Backlog The size (in kilobytes) of the backlog queue.
Bytes Rcvd The number of bytes received by the proxy service since the proxy service joined the cluster.
Delta The number of bytes received by the proxy service since the last update.
MsgsSent The number of messages sent by the proxy service since the proxy service joined the cluster.
Delta The number of messages sent by the proxy service since the last update.
Backlog The size of the backlog queue that holds messages scheduled to be sent by one of the proxy service pool threads.
Msgs Rcvd The number of messages received by the proxy service since the proxy service joined the cluster.
Delta The number of messages received by the proxy service since the last update.
Tasks The number of tasks performed by the proxy service since the last time the statistics were reset.
RequestAverageDuration The average duration (in milliseconds) of an individual synchronous request issued by the proxy service since the last time the statistics were reset.
RequestMaxDuration Maximum duration (in milliseconds) of an individual proxy service request since the last time the statistics were reset.
RequestPendingCount The number of pending proxy service requests.
RequestPendingDuration The average duration (in milliseconds) that an individual proxy service request waits before being executed.
RequestTimeoutCount The total number of timed-out proxy service requests since the last time the statistics were reset.
RequestTimeoutMillis The duration (in milliseconds) for a proxy service request to reach the specified timeout threshold.
RequestTotalCount The number of requests issued and received by the proxy service.
TaskAverageDuration The average duration (in milliseconds) of an individual task execution.
TaskBacklog The size of the backlog queue that holds tasks scheduled to be executed by one of the proxy service pool threads.
TaskCount The number of tasks performed by the proxy service since the last time the statistics were reset.
TaskHungCount The total number of currently executing hung tasks.
TaskHungDuration The longest currently executing hung task duration in milliseconds.
TaskHungTaskId The id of the of the longest currently executing hung task.
TaskHungThresholdMillis The duration (in milliseconds) that a proxy service task can execute before it is considered hung. Note that a posted task that has not yet started is never considered as hung.
TaskMaxBacklog The maximum size of the proxy service backlog queue since the last time the statistics were reset.
TaskTimeoutCount The total number of timed-out proxy service tasks since the last time the statistics were reset.
TaskTimeoutMillis The default timeout value (in milliseconds) for tasks that can be timed-out but do not explicitly specify the task execution timeout value.
IncomingBufferPoolSize

The number of buffers in the incoming pool.
ThreadAbandonedCount The number of abandoned threads from the proxy service thread pool. A thread is abandoned and replaced with a new thread if it executes a task for a period of time longer than execution timeout and all attempts to interrupt it fail.
ThreadCount The number of threads in the proxy service thread pool.
ThreadIdleCount The number of currently idle threads in the proxy service thread pool.
AverageActiveThreadCount The average number of proxy service active threads, not currently idle, since the last time the statistics were reset.
ThreadAverageActiveCount

The average number of active (not idle) threads in the service thread pool since the last time the statistics were reset.
AverageTaskDuration The average duration (in milliseconds) to perform a proxy service task since the last time the statistics were reset.
MaximumBacklog

The maximum size of the backlog queue since the last time the statistics were reset.
Throughput The amount of data (in kilobytes) that is transferred by the proxy service.
ThroughputInbound The amount of data (in kilobytes) that is transferred from clients to the proxy service.
ThroughputOutbound The amount of data (in kilobytes) that is transferred from the proxy service to clients.
IncomingBufferPoolCapacity The size (in kilobytes) of the proxy service incoming buffer pool.
OutgoingBufferPoolCapacity The size (in kilobytes) of the proxy service outgoing buffer pool.
OutgoingBufferPoolSize

The number of buffers in the proxy service outgoing pool.
nodeld The unique identifier for the proxy service.
RefreshTime

The timestamp when this model was last retrieved from a corresponding node. For local servers it is the local time.
HostName The name of the host where the proxy service resides.
MemberName A specified, unique name of the host where the proxy service resides.
SeniorMemberId

The proxy service senior member id. If the proxy service is not running, it is -1.

Trend Graph

Select a host from the Proxy Services table to populate the trend graph and Remote Endpoint table.
Remote Endpoint Table Select a proxy service remote endpoint to populate the trend graphs. This table is populated by the row selected in the Proxy Services table.
Selected Proxy Select a proxy service from the Proxy Services table.
Selected Endpoint This field is populated by the selection made in the Remote Endpoint table.
Time Range Select range varying from 2 Minutes to Last 7 Days, or display All Data.
Msgs Recieved The number of messages received by the selected proxy service from the remote endpoint.
Msgs Sent The number of messages sent by the selected proxy service to the remote endpoint.
Bytes Recieved The number of bytes received by the selected proxy service from the remote endpoint.
Bytes Sent The number of bytes sent by the selected proxy service to the remote endpoint.
Total KB Sent Total kilobytes sent by the selected proxy service to the remote endpoint.
Total KB Rcvd Total kilobytes received by the selected proxy service from the remote endpoint.

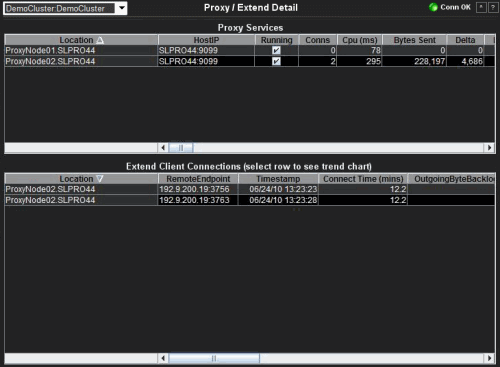

Proxy/Extend Detail
Table shows data for proxy services and extend client connection data, including remote endpoint, time stamp, connect time and outgoing byte backlog.



Cluster Select a cluster from the drop-down menu.

Proxy Services Location Identifies the proxy service and the host it resides on.
HostIP The IP address of the host where the proxy service resides.
Running Indicates that the proxy service is running when selected.
Connections The number of extend clients connected to the selected host or hosts.
CPU % The average percent CPU utilization for each proxy service in the cluster.
Bytes Sent The number of bytes sent by the proxy service since the proxy service joined the cluster.
Delta The number of bytes sent by the proxy service since the last update.
Backlog The size (in kilobytes) of the backlog queue.
Bytes Rcvd The number of bytes received by the proxy service since the proxy service joined the cluster.
Delta The number of bytes received by the proxy service since the last update.
MsgsSent The number of messages sent by the proxy service since the proxy service joined the cluster.
Delta The number of messages sent by the proxy service since the last update.
Backlog The size of the backlog queue that holds messages scheduled to be sent by one of the proxy service pool threads.
Msgs Rcvd The number of messages received by the proxy service since the proxy service joined the cluster.
Delta The number of messages received by the proxy service since the last update.
Tasks The number of tasks performed by the proxy service since the last time the statistics were reset.
RequestAverageDuration The average duration (in milliseconds) of an individual synchronous request issued by the proxy service since the last time the statistics were reset.
RequestMaxDuration Maximum duration (in milliseconds) of an individual proxy service request since the last time the statistics were reset.
RequestPendingCount The number of pending proxy service requests.
RequestPendingDuration The average duration (in milliseconds) that an individual proxy service request waits before being executed.
RequestTimeoutCount The total number of timed-out proxy service requests since the last time the statistics were reset.
RequestTimeoutMillis The duration (in milliseconds) for a proxy service request to reach the specified timeout threshold.
RequestTotalCount The number of requests issued and received by the proxy service.
TaskAverageDuration The average duration (in milliseconds) of an individual task execution.
TaskBacklog The size of the backlog queue that holds tasks scheduled to be executed by one of the proxy service pool threads.
TaskCount The number of tasks performed by the proxy service since the last time the statistics were reset.
TaskHungCount The total number of currently executing hung tasks.
TaskHungDuration The longest currently executing hung task duration in milliseconds.
TaskHungTaskId The id of the of the longest currently executing hung task.
TaskHungThresholdMillis The duration (in milliseconds) that a proxy service task can execute before it is considered hung. Note that a posted task that has not yet started is never considered as hung.
TaskMaxBacklog The maximum size of the proxy service backlog queue since the last time the statistics were reset.
TaskTimeoutCount The total number of timed-out proxy service tasks since the last time the statistics were reset.
TaskTimeoutMillis The default timeout value (in milliseconds) for tasks that can be timed-out but do not explicitly specify the task execution timeout value.
IncomingBufferPoolSize

The number of buffers in the incoming pool.
ThreadAbandonedCount The number of abandoned threads from the proxy service thread pool. A thread is abandoned and replaced with a new thread if it executes a task for a period of time longer than execution timeout and all attempts to interrupt it fail.
ThreadCount The number of threads in the proxy service thread pool.
ThreadIdleCount The number of currently idle threads in the proxy service thread pool.
AverageActiveThreadCount The average number of proxy service active threads, not currently idle, since the last time the statistics were reset.
ThreadAverageActiveCount

The average number of active (not idle) threads in the service thread pool since the last time the statistics were reset.
AverageTaskDuration The average duration (in milliseconds) to perform a proxy service task since the last time the statistics were reset.
MaximumBacklog

The maximum size of the backlog queue since the last time the statistics were reset.
Throughput The amount of data (in kilobytes) that is transferred by the proxy service.
ThroughputInbound The amount of data (in kilobytes) that is transferred from clients to the proxy service.
ThroughputOutbound The amount of data (in kilobytes) that is transferred from the proxy service to clients.
IncomingBufferPoolCapacity The size (in kilobytes) of the proxy service incoming buffer pool.
OutgoingBufferPoolCapacity The size (in kilobytes) of the proxy service outgoing buffer pool.
OutgoingBufferPoolSize

The number of buffers in the proxy service outgoing pool.
nodeld The unique identifier for the proxy service.
RefreshTime

The timestamp when this model was last retrieved from a corresponding node. For local servers it is the local time.
HostName The name of the host where the proxy service resides.
MemberName A specified, unique name of the host where the proxy service resides.
SeniorMemberId

The proxy service senior member id. If the proxy service is not running, it is -1.

Extend Client Connections

Select a row from the Proxy Services table to populate client data in the table.
Location Identifies the proxy service and the host it resides on.
RemoteEndpoint The IP address of the client.
Timestamp The date and time (in cluster time) that this client joined the proxy service.
Connect Time (mins) The duration (in minutes) the client has been connected to the proxy service.
OutgoingByteBacklog The size of the backlog queue (in bytes) that holds outgoing bytes scheduled to be executed by one of the proxy service pool threads for the client.
OutgoingMessageBacklog The number of messages in the backlog queue that holds outgoing messages scheduled to be sent to the client by one of the proxy service pool threads.
TotalBytesReceived The number of bytes received from the client by the proxy service since the client connected to the proxy service.
Delta The number of bytes received from the client by the proxy service since the last update.
TotalBytesSent The number of bytes sent to the client by the proxy service since the client connected to the proxy service.
Delta The number of bytes sent to the client by the proxy service since the last update.
TotalMessagesReceived The number of messages received from the client by the proxy service since the client connected to the proxy service.
Delta The number of messages received from the client by the proxy service since the last update.
TotalMessagesSent The number of messages sent to the client by the proxy service since the client connected to the proxy service.
Delta The number of messages sent to the client by the proxy service since the last update.
UUID The unique identifier for the extend client application.
nodeld The unique identifier for the proxy service the extend client is connected to.
