Using the Monitor - Cluster Views

Cluster Views displays present high-level performance metrics for the cluster. Use the Cluster Views displays to quickly assess Coherence cluster-level performance metrics.

NOTE: Click the button to view the current display in a new window.

Cluster - Overview
 Use this display to quickly assess the cluster size (number of nodes, clients and caches) and stability, service and cache capacity utilization and HA status. This display is the initial view in the OC Monitor.

Check the Communication Success % bar charts for cluster packet loss. If the pairs of bar graphs are uneven, this indicates that packet loss is occurring. The cause for the packet loss could be a network issue, a single defective NIC card, a garbage collection issue, disk swapping or a shortage of CPU on a single machine. Investigate further by clicking the bar chart to view details in the Cluster - Memory/Network Health display.

Cluster Select a cluster from the drop-down menu.
Coherence Cluster Configuration
Total Nodes Total number of nodes being monitored, including storage enabled nodes, client nodes, and management (JMX) nodes.
Storage Total number of nodes in the cluster which have storage enabled for any cache. This value is equal to the total nodes when replicated caches are being used. The number is less when only distributed cache types are utilized.
Clients Total number of nodes in the cluster which do not have storage enabled for any cache. These are usually process nodes, proxy nodes, extend nodes, or MBean server nodes.
Caches Total number of caches in the cluster.
Version Version of Oracle Coherence running.
Memory Utilization
Client Nodes Monitor client node memory utilization for the cluster.
Max MB Total memory allocated.
Used MB Total memory used.
% Percent of allocated memory being used.
Storage Nodes Monitor storage node memory utilization for the cluster.
Max MB Total memory allocated.
Used MB Total memory used.
% Percent of allocated memory being used.
Senior Node Node ID of the senior node of the cluster.
Service Configuration & HA Status
Cache Services Assess size, distribution and status of Coherence protocol-related cache services used by applications in the cluster. Determine whether cache services are distributed properly across the cluster. The list includes distributed, replicated and mirrored caches. Note that Management and Invocation services are intentionally not listed.
Service Name The name of the service in the cluster. These are defined in each server cache configuration XML file.
StatusHA The high availability status for each of the services.
MACHINE-SAFE If a machine for the service goes offline the data stored on the machine remains available in the cluster (no data loss).
NODE-SAFE If a node for the service goes  offline (or is taken offline using kill-9) data stored on the node remains available in the cluster (no data loss).
ENDANGERED If a node for the service goes offline the data stored on the node is potentially unavailable in the cluster (potential data loss).
Total Nodes The number of nodes in the cluster that are running a thread for the service.
Storage Nodes The number of nodes for the service where storage is enabled.
Caches The number of caches for the service.
Objects The number of objects in all caches for the service.
Senior The node ID of the most senior node in the cluster for the service.
Caches - Busiest & Largest
Most Gets Track services performing the greatest number of gets in the cluster. The total is the number of gets by nodes in the cluster since the last sample was retrieved. Click to drill-down to the All Caches - Current Activity display.
Cumulative Select the checkbox to show only the cumulative total for all nodes for the service since they started in the Most Gets bar chart.
Largest Cache Track caches that consume the greatest amount of capacity. Click to drill-down to the All Caches - Current Size display.
Cluster Stability
Node Uptimes Monitor cluster stability and how often nodes are restarted (for example, every month, every day, every hour, and so forth). If the number of nodes running for seconds of time increases (and your nodes are restarted weekly), consider investigating. Click in the Node Uptimes region to view details on the Stability Metrics display.

Solid colors in the graph indicate the amount of time since the nodes were started. Longer uptimes generally represent a more stable cluster. Departed Nodes specifies the number of nodes that have departed and not returned since monitoring of the cluster was started. If a node departs and returns with the same name, the count is decremented.
Memory Utilization % Monitor memory utilization for all nodes in the cluster.
Average The average memory utilization for all nodes in the cluster.
Worst Node The most amount of memory consumed by a single node in the cluster. A slow node that provides data to other nodes can cause latency issues for the entire cluster. If a node is consuming too much memory, investigate by clicking the bar chart to view details in the Cluster - Memory/Network Health display.
Communication Success % Monitor cluster packet loss--an excellent indicator of systemic issues in the cluster. If the pairs of bar graphs are uneven, this indicates that packet loss is occurring and analysis is needed. Investigate further by clicking the bar chart to view details in the Cluster - Memory/Network Health display.

The bar charts show the percent (%) successful UDP packet transfers in the cluster for the last twenty minutes. Each pair of bars show the Publish and Receive success rates for all nodes in the cluster. Compare each pair of Publish and Receive bars. The bars should have similar rates. If they do not have similar similar rates this indicates packet loss in the cluster. For example, if the Publish success rate is much lower than the Receive success rate, packets are being resent and the receiver is not getting them.

Compare and track the pairs of bars across twenty minutes. The bars should track evenly. If the bars do not track evenly this also is a sign of packet loss in the cluster.

The cause for the packet loss could be a network issue, a single defective NIC card, a garbage collection issue, disk swapping or a shortage of CPU on a single machine.
Publish The Publish success rate is the percent (%) of packets in the cluster successfully sent by nodes, without having to be resent. A 100% success rate occurs when a packet is sent and does not have to be re-sent. When a packet must be resent the success rate is reduced.
Receive The Receive success rate is the percent (%) of packets in the cluster successfully received by nodes, without being received twice. A 100% success rate occurs when a packet is received once. When a packet is received twice the success rate is reduced.

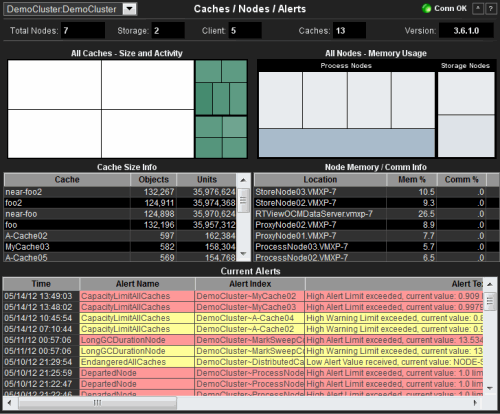

Caches / Nodes / Alerts
 Use this display to view cache and node utilization hot spots and currently active alerts. Observe how much capacity is taken from memory and how much is taken from consumption. Identify caches and nodes that are slow due to a shortage of capacity or memory. Verify nodes are configured properly (using the mouseover tool-tip). View time-ordered list of current alerts in the cluster.

Cluster Select a cluster from the drop-down menu.
Cluster Size
Total Nodes The total number of nodes being monitored. This includes storage enabled nodes, client nodes, and management (JMX) nodes.
Storage The total number of nodes in the cluster which have storage enabled for any cache. This value is equal to the total nodes when replicated caches are being used. The number is less when only distributed cache types are utilized.
Clients The total number of nodes in the cluster which do not have storage enabled for any cache. These are usually process nodes, proxy nodes, extend nodes, or MBean server nodes.
Caches The total number of caches in the cluster.
Version The version of Oracle Coherence running.
Capacity & Memory Usage
All Caches - Size and Activity Use the heatmap to identify a cache with high capacity or memory usage, indicated by a dark rectangle. Observe how much capacity is taken from memory and how much is taken from consumption. View cache metrics using the mouseover tool-tip. Investigate cache utilization trends over time in the All Caches History display. Click on a rectangle to drill-down to the All Caches - Activity Heatmap.

The heatmap is grouped by service. Each rectangle represents a cache within the service. The size of each rectangle represents the size of a cache in units. The color of each rectangle represents the number of gets on the cache. The color is linearly scaled, where white is the minimum gets seen and dark green is the maximum gets seen.
Cache Size Info The table lists each cache in the cluster and enables you to sort the by most/least amount of objects or units. Click a row to view details in the Single Cache - Summary display.
Cache The name of the cache.
Objects The number of objects currently in the cache.
Units The number of units currently used by the cache.
All Nodes- Memory Usage Use the heatmap to identify a node with high memory usage, indicated by a dark rectangle. Verify nodes are configured properly using the mouseover tool-tip. Click on a rectangle to drill-down to the All Nodes by Type/Host.

The heatmap is divided into two sections: Process Nodes and Storage Nodes. Each rectangle represents a node in the cluster. The size of the rectangle represents the value of the maximum node memory. The color of the rectangle represents the value of the memory used. The color is linearly scaled, where white is 0% memory used and dark green is 80% memory used.
Node Memory/Comm Info The table lists each node in the cluster and enables you to sort the by most/least amount of objects or units. Click a row to view details in the Single Node - Summary display.
Location The name of the ...
Mem % The percent memory utilization for the node.
Comm % The percent memory utilization used for packet transfer by the node.
All Active Alerts (in selected cluster)
Current Alerts The table lists all alerts for all sources (nodes and caches) in the selected cluster that have exceeded an alert threshold. Sort the data by column using the button. By default, critical and warning alerts are shown. Select an alert in the list to open the Alert Detail Table dialog and acknowledge an alert or add comments.
Red Critical state: The critical threshold for this alert has been exceeded.
Yellow Warning state: The warning threshold for this alert has been exceeded.
Time The time this alert was issued.
Alert Name The alert type. Alert types contain alert threshold definitions. A single alert type applies to all nodes or caches in the cluster. For example, the AvailableMemoryLowNodeSpike alert type applies to multiple nodes, and the CapacityLimitCache alert type applies to multiple caches. (The Alert Index identifies the source node for the alert.)
Alert Index The Oracle Coherence source (node or cache) from which the alert originated.

As with nodes, a cluster can have multiple caches. A single alert type, such as CapacityLimitCache, applies to all caches in the cluster. The Alert Index identifies the cache from which the alert originated.
Alert Text Descriptive information about the alert.
Cleared The checkbox is selected if this alert has cleared. An alert is considered cleared when the source for the alert (node or cache) returns to below the alert threshold. To include acknowledged alerts in the table, select Show Cleared.
Acknowledged The checkbox is selected if this alert has been acknowledged. Acknowledged alerts have been manually acknowledged by an administrator in the Manage Alert Detail dialog. Acknowledged alerts are automatically removed from the Current Alerts table. To include acknowledged alerts in the table, select Show Acknowledged.
ID Unique ID for the alert.
Comments Comments about the alert previously entered by an administrator.
Cleared Reason An alert is in a cleared state when the source for the alert (node or cache) returns to below the alert threshold. Or, with the DepartedNode alert type, when the node rejoins the cluster the alert is cleared.
Cleared Time The time the alert was cleared.
Alert Index Value The Oracle Coherence source (node or cache) from which the alert originated.
Cluster Connection The name of the cluster in which the alert source (node or cache) is a member.

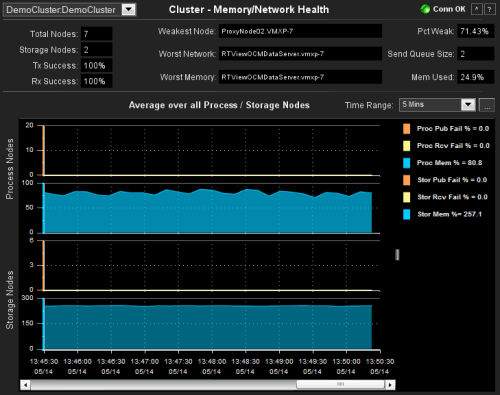

Memory/Network Health
Use this display to assess cluster memory utilization and packet transmission success/failure trends, and to see the weakest nodes.

Cluster Select a cluster from the drop-down menu.

Total Nodes The total number of nodes in the cluster. This includes storage enabled nodes, client nodes, and management (JMX) nodes.
Storage Nodes The total number of nodes in the cluster which have storage enabled for any cache. This value is equal to the total nodes when replicated caches are being used.  The number is less when only distributed cache types are utilized.

Tx Success

The publisher success rate, in percent. The Publish success rate is the percent (%) of packets in the cluster successfully sent by nodes, without having to be resent. A 100% success rate occurs when a packet is sent and does not have to be re-sent. When a packet must be resent the success rate is reduced.
Rx Success

The receiver success rate, in percent. The Receive success rate is the percent (%) of packets in the cluster successfully received by nodes, without being received twice. A 100% success rate occurs when a packet is received once. When a packet is received twice the success rate is reduced.

Weakest Node The node voted by Coherence as the weakest in the cluster. The Weakest Node often points to a server/node that is causing performance issues. The node value most often appears in the "weakest node" attribute of all the JMX "node" objects.  The format of this string is <Node IP Address>:< Node Port >/<NodeID>.
Weak The percent of the Coherence nodes that "elected" the node as the weakest.
Worst Network The node that has the longest network queue in the cluster.
Send Queue The number of packets currently scheduled for delivery, including packets sent and still awaiting acknowledgment. Packets that do not receive an acknowledgment within the ResendDelay interval are automatically resent.
Worst Memory The node that has the lowest available memory of any node in the cluster.
Mem Used The percent of memory consumed on the Worst Memory node.

Average over all Process / Storage Nodes The trend graphs show aggregated performance metrics for storage and process nodes.
Time Range Select a time range or All Data from the drop-down menu. By default, the ending period for displayed data is the current time. To specify a time range:

1. Click the  button to open the calendar dialog. By default, the time range end point is the current time.

2. Change the time range end point by clicking the  button and selecting the date and time, then click OK. Or enter the date and time in the text field using the following format: MMM dd, YYYY HH:MM:ss. For example, Apr 26, 2012 5:01 PM.

3. Click Apply. The navigation arrows  appear.

4. Use the navigation arrows  to move forward or backward one time period (the time period selected from the Time Range drop-down menu). Click Restore to Now to reset the time range end point to the current time.
Process Nodes Publish Failures and Received Failures Indicates the trending of process node publisher and receiver failure rates. If these values are above 10%, action may be required to improve the stability or performance of the cluster as a whole. The Weakest Node information often points to the server/nodes that are the cause of these issues.
Memory Utilization % Indicates the trending of process node memory utilization. If these values are above 10%, action may be required to improve the stability or performance of the cluster as a whole.
Storage Nodes Publish Failures and Received Failures Indicates the trending of storage node publisher and receiver failure rates . If these values are above 10%, action may be required to improve the stability or performance of the cluster as a whole. The Weakest Node information often points to the server/nodes that are the cause of these issues.
Memory Utilization % Indicates the trending of storage node memory utilization. If these values are above 10%, action may be required to improve the stability or performance of the cluster as a whole.

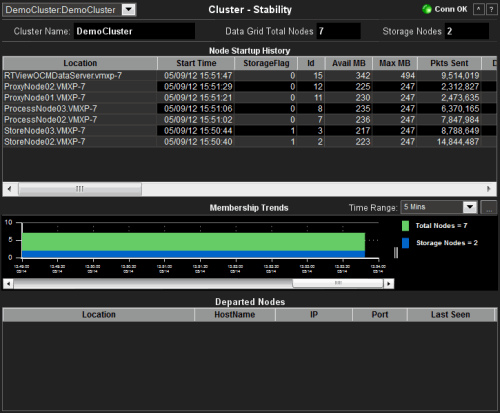

Stability Metrics
Use this display to troubleshoot nodes joining and leaving the cluster, and view HA status for cache services. This display presents information about node uptimes and the stability of the cluster.

Cluster Select a cluster from the drop-down menu.

Cluster Name Select a cluster from the drop-down menu.
Data Grid Total Nodes The total number of nodes being monitored. This includes storage enabled nodes, client nodes, and management (JMX) nodes.
Storage Nodes The total number of nodes in the cluster which have storage enabled for any cache. This value is equal to the total nodes when replicated caches are being used. The number is less when only distributed cache types are utilized.

Node Startup History Use this table to identify nodes that have departed and returned to the cluster recently. This table contains a list of nodes in the cluster, sorted by start time (the most recently created node is listed first).
Location A unique identifier for each node. It is defined as: member_name.machine.rack.site.
Start Time The date and time that the node joined the cluster.
StorageFlag Indicates whether storage is enabled (0 or 1).
Id The short member id that uniquely identifies this member.
Avail MB The amount of available memory for this node, in megabytes.
Max MB The maximum amount of memory for this node, in megabytes.
Pkts Sent The cumulative number of packets sent by this node since the node statistics were last reset.
Delta The number of packets sent by this node since the last update.
Pkts Rcvd The cumulative number of packets received by this node since the node statistics were last reset.
Delta The number of packets received by this node since the last update.
Pkts Rptd The cumulative number of duplicate packets received by this node since the node statistics were last reset.
Delta The number of duplicate packets received by this node since the last update.
Pkts Resent The cumulative number of packets resent by this node since the node statistics were last reset.
Delta The number of packets resent by this node since the last update.
Pub Succ Rate The publisher success rate for this node since the node statistics were last reset. Publisher success rate is a ratio of the number of packets successfully delivered in a first attempt to the total number of sent packets. A failure count is incremented when there is no ACK received within a timeout period. It could be caused by either very high network latency or a high packet drop rate.
Rec Succ Rate The receiver success rate for this node since the node statistics were last reset. Receiver success rate is a ratio of the number of packets successfully acknowledged in a first attempt to the total number of received packets. A failure count is incremented when a re-delivery of previously received packet is detected. It could be caused by either very high inbound network latency or lost ACK packets.
Member The member name for this node.
Machine The machine name for this node.
Rack The rack name for this node.
Site The site name for this node.
Process The process name for this node.
Uni Addr The unicast address. This is the IP address of the node's DatagramSocket for point-to-point communication.
Uni Port The unicast port. This is the port of the node's DatagramSocket for point-to-point communication.
RoleName The role name for this node.
ProductEdition The product edition this node is running. Possible values are: Standard Edition (SE), Enterprise Edition (EE), Grid Edition (GE).

Membership Trends Track the total number of nodes and the total number of storage nodes in the cluster for the duration of the user session. These lines are normally unchanging or "flat". If there are fluctuations in this graph, check the debugging guide for appropriate actions.
Time Range Select a time range or All Data from the drop-down menu. By default, the ending period for displayed data is the current time. To specify a time range:

1. Click the  button to open the calendar dialog. By default, the time range end point is the current time.

2. Change the time range end point by clicking the  button and selecting the date and time, then click OK. Or enter the date and time in the text field using the following format: MMM dd, YYYY HH:MM:ss. For example, Apr 26, 2012 5:01 PM.

3. Click Apply. The navigation arrows  appear.

4. Use the navigation arrows  to move forward or backward one time period (the time period selected from the Time Range drop-down menu). Click Restore to Now to reset the time range end point to the current time.

Departed Nodes Track departed nodes by IP address, port number and time last seen.
Location A unique identifier for each node. It is defined as: member_name.machine.rack.site.
HostName The name of the host on which the node resides.
IP The node IP address.
Port The unicast port the node used while in the cluster. This is the port of the node's DatagramSocket for point-to-point communication.
Last Seen The date and time that the node left the cluster.

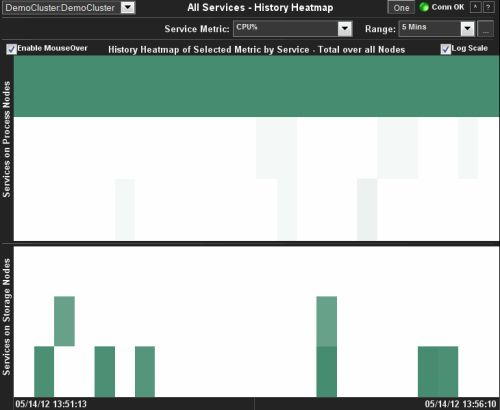

All Services History
Use this display to assess utilization of cache capacity, over time, by all services in a cluster. Analyze load distribution across services and caches, check for bottlenecks and quickly identify services that need more threads. Answer questions such as:

Use the mouseover tool-tip to see how many caches the service runs on, and data for the selected metric.

Cluster Select a cluster from the drop-down menu.
One Click to drill-down and view the Single Service History display.

Service Metric Select a service metric for which to display data in the heatmap. Use the mouse-over tool-tip to view metrics. Identify a service with high utilization. Perform node analysis by clicking One to view the Service Metric History Heatmap display.
CPU% Percent of CPU utilization in the specified time range.
Requests The number of client requests issued to the cluster in the specified time range. This metric is a good indicator of end-user utilization of the service.
Messages The number of messages for the given node in the specified time range.
ActiveThreads The number of threads in the service thread pool, not currently idle.
TaskBacklog The size of the backlog queue that holds tasks scheduled to be executed by one of the service threads. Use this metric for determining capacity utilization for threads running on a service. For example, if the service has a high TaskBacklog rate and a low amount of CPU available, consider increasing the number of threads for the service to improve performance.
RequestPendingCount The number of pending requests issued by the service.
RequestAverageDuration The average duration (in milliseconds) of an individual request issued by the service since the last time the statistics were reset.
Range Select a time range or All Data from the drop-down menu. By default, the ending period for displayed data is the current time. To specify a time range:

1. Click the  button to open the calendar dialog. By default, the time range end point is the current time.

2. Change the time range end point by clicking the  button and selecting the date and time, then click OK. Or enter the date and time in the text field using the following format: MMM dd, YYYY HH:MM:ss. For example, Apr 26, 2012 5:01 PM.

3. Click Apply. The navigation arrows  appear.

4. Use the navigation arrows  to move forward or backward one time period (the time period selected from the Time Range drop-down menu). Click Restore to Now to reset the time range end point to the current time.

Enable MouseOver Select this option to make service details visible upon mouseover.
History Heatmap of Selected Metric by Service Use the heatmap to view utilization trends for all services, over time, and quickly identify heavy usage, indicated by a dark color (by default, dark green). Look for a consistently dark horizontal line, which typically indicates constant high utilization. If this level of utilization is unexpected, consider performing a lower level analysis by viewing service details in the Single Service - Summary display.

Two heatmaps, one for Process Nodes and another for Storage Nodes, show utilization trends for the selected metric, for all services running in the cluster. Each row represents a service. Cells in a row are sized uniformly. Each column represents a time period (typically in 10 second intervals).  The color of the row cells represent the relative value of the selected service Metric, where a darker shade is a larger value.

Use the mouseover tool-tip to see how many caches the service runs on, and data for the selected metric.
Services on Process Nodes Each row represents a service. The color of the cells represents the relative value of the selected Service Metric, where a darker shade is a larger value. The size of the cells are uniform as they each represent one process node. Use the mouseover tool-tip to see how many caches the service runs on, and data for the selected metric.
Services on Storage Nodes



 Each row represents a service. The color of the cells represents the relative value of the selected Service Metric, where a darker shade is a larger value. The size of the cells are uniform as they each represent one storage node. Use the mouseover tool-tip to see how many caches the service runs on, and data for the selected metric.
Log Scale Enable to use a logarithmic scale for the Y axis. Use Log Scale to see usage correlations for data with a wide range of values. For example, if a minority of your data is on a scale of tens, and a majority of your data is on a scale of thousands, the minority of your data is typically not visible in non-log scale graphs. Log Scale makes data on both scales visible by applying logarithmic values rather than actual values to the data.

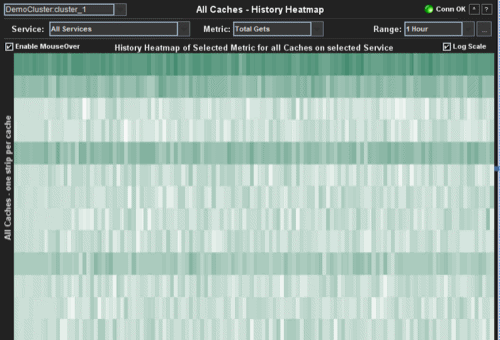

All Caches History
Use this display to assess capacity utilization, over time, for all caches in a cluster. Analyze load distribution, check for bottlenecks and quickly identify caches with high usage. Answer questions such as:

Use the mouseover tool-tip to see see the name of the cache and data for the selected metric.



Cluster Select a cluster from the drop-down menu.

Service Select a service for which to display cache data in the heatmap, or select All Services. Options available are populated by the services in the cluster.

Metric Select a metric for which to display data in the heatmap.
Total Gets The total number of requests for data from this cache.
Total Puts The total number of data stores into this cache.
Cache Hits The total number of successful gets for this cache.
Cache Misses The total number of failed gets for this cache. This metric indicates whether cache utilization is effective. For example, how often requests are made for data that does not exist in the cache. If a cache has a high rate of misses, consider performing a lower level analysis by viewing the cache in the Single Cache - Summary display. Check the metrics for Size, Evictions and Misses to determine whether more capacity is needed.
Cache Size The total number of objects in the cache.
Range Select a time range or All Data from the drop-down menu. By default, the ending period for displayed data is the current time. To specify a time range:

1. Click the  button to open the calendar dialog. By default, the time range end point is the current time.

2. Change the time range end point by clicking the  button and selecting the date and time, then click OK. Or enter the date and time in the text field using the following format: MMM dd, YYYY HH:MM:ss. For example, Apr 26, 2012 5:01 PM.

3. Click Apply. The navigation arrows  appear.

4. Use the navigation arrows  to move forward or backward one time period (the time period selected from the Time Range drop-down menu). Click Restore to Now to reset the time range end point to the current time.

Enable MouseOver Select this option to make cache details visible upon mouseover.
History Heatmap of Selected Metric Use the heatmap to view utilization trends for all caches, over time, and quickly identify heavy usage, indicated by a dark color (by default, dark green). Look for a consistently dark horizontal line, which typically indicates constant high utilization. If this level of utilization is unexpected, consider performing a lower level analysis by viewing cache details in the Single Cache - Summary display.

Also look for a dark vertical line, which indicates that all the caches, nodes or services are being used simultaneously. Typically this indicates further analysis is needed.

The heatmap shows cache utilization trends for the selected service and metric, for all caches running in the cluster. Each row represents a cache. Cells in a row are sized uniformly and represent one process node. Each column represents a time period (typically in 10 second intervals). The heatmap is grouped vertically by service. The color of the row cells represent the relative value of the selected service Metric, where a darker shade is a larger value.

Use the mouseover tool-tip to see see the name of the cache and data for the selected metric.
Log Scale Enable to use a logarithmic scale for the Y axis. Use Log Scale to see usage correlations for data with a wide range of values. For example, if a minority of your data is on a scale of tens, and a majority of your data is on a scale of thousands, the minority of your data is typically not visible in non-log scale graphs. Log Scale makes data on both scales visible by applying logarithmic values rather than actual values to the data.

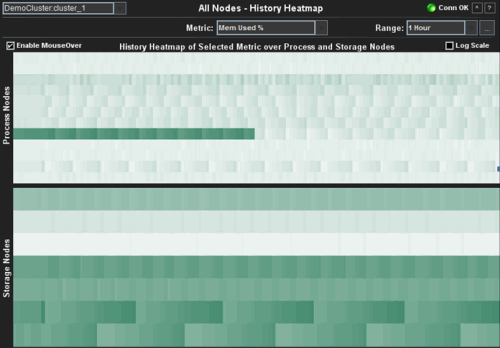

All Nodes History
Use this display to assess capacity utilization, over time, for all nodes in a cluster. Analyze load distribution, check for bottlenecks and quickly identify nodes with high usage. Use the mouseover tool-tip to see see the node hostname and data for the selected metric.



Cluster Select a cluster from the drop-down menu.

Metric Select a metric for which to display data in the heatmap.
Mem Used % The percent of memory used by the node in the specified time range.
Pkts Sent Fail % The percent of packets that had to be resent by this node during the specified time range.
Pkts Rcvd Fail % The percent of packets that failed to be received by this node and had to be resent during the specified time range.
Range Select a time range or All Data from the drop-down menu. By default, the ending period for displayed data is the current time. To specify a time range:

1. Click the  button to open the calendar dialog. By default, the time range end point is the current time.

2. Change the time range end point by clicking the  button and selecting the date and time, then click OK. Or enter the date and time in the text field using the following format: MMM dd, YYYY HH:MM:ss. For example, Apr 26, 2012 5:01 PM.

3. Click Apply. The navigation arrows  appear.

4. Use the navigation arrows  to move forward or backward one time period (the time period selected from the Time Range drop-down menu). Click Restore to Now to reset the time range end point to the current time.

Enable MouseOver Select this option to make node details visible upon mouseover.
History Heatmap of Selected Metric by Service Use the heatmap to view utilization trends for all nodes, over time, and quickly identify heavy usage, indicated by a dark color (by default, dark green). Look for a consistently dark horizontal line, which typically indicates constant high utilization. If this level of utilization is unexpected, consider performing a lower level analysis by viewing node details in the Single Node - Summary display.

Two heatmaps, one for Process Nodes and another for Storage Nodes, show utilization trends for the selected metric, for all nodes running in the cluster. Each row represents a node. Cells in a row are sized uniformly. Each column represents a time period (typically in 10 second intervals).  The color of the row cells represent the relative value of the selected service Metric, where a darker shade is a larger value.

Use the mouseover tool-tip to see the node hostname and data for the selected metric.
Process Nodes Each row represents a node. The color of the cells represents the relative value of the selected Service Metric, where a darker shade is a larger value. The size of the cells are uniform. Use the mouseover tool-tip to see the node hostname and data for the selected metric.
Storage Nodes Each row represents a node. The color of the cells represents the relative value of the selected Service Metric, where a darker shade is a larger value. The size of the cells are uniform. Use the mouseover tool-tip to see the node hostname and data for the selected metric.
Log Scale Enable to use a logarithmic scale for the Y axis. Use Log Scale to see usage correlations for data with a wide range of values. For example, if a minority of your data is on a scale of tens, and a majority of your data is on a scale of thousands, the minority of your data is typically not visible in non-log scale graphs. Log Scale makes data on both scales visible by applying logarithmic values rather than actual values to the data.










RTView contains components licensed under the Apache License Version 2.0.



Treemap Algorithms v1.0  is used without modifications and licensed by MPL Version 1.1. Copyright © 2001 University of Maryland, College Park, MD



Datejs is licensed under MIT. Copyright © Coolite Inc.



jQuery is licensed under MIT. Copyright © John Resig,



JCalendar 1.3.2 is licensed under LGPL. Copyright © Kai Toedter.



jQuery is licensed under MIT. Copyright (c) 2009 John Resig, http://jquery.com/ JCalendar 1.3.2 is licensed under LGPL. Copyright © Kai Toedter.



JMS, JMX and Java are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. They are mentioned in this document for identification purposes only.



SL, SL-GMS, GMS, RTView, SL Corporation, and the SL logo are trademarks or registered trademarks of Sherrill-Lubinski Corporation in the United States and other countries. Copyright © 1998-2011 Sherrill-Lubinski Corporation. All Rights Reserved.
