Configure Databases of the
Central Servers
The Central Servers require the following
databases: ALERTDEFS, RTVCMDB, RTVCONFIG and RTVHISTORY, each of which contain several tables.
RTView EM is delivered with a default memory resident HSQLDB database, which is
suitable for evaluation purposes. However in production deployments, it is
recommended that a supported database engine be used that is accessible via JDBC. This section describes
how to setup an alternate database and, if needed, how to manually create the
database tables (which requires table-creation permission in your database
engine).

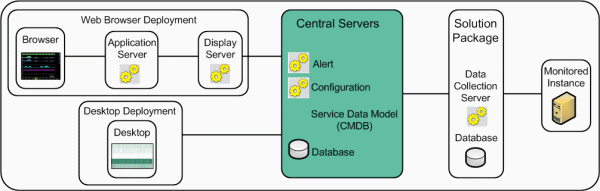

The following figure illustrates the RTView EM components
that are the subject of this section.
At this
point you have:
To configure the databases of the Central
Servers:
NOTE: Use the templates provided in the database.properties file,
located in the your rtvapm/common/dbconfig
directory, to make edits
described in the following steps.
1. Choose and install a database of your choice.
Supported databases are Oracle, Sybase, DB2, Microsoft SQL Server and MySQL.
2. Open the central.properties file (located
in your project directory/servers/central
directory) in a
text editor and make the following edits:
| a. |
Under the ConfigCollector properties section
there is a subsection for each database connection (the subsections are Define
the ALERTDEFS Database, Define the RTVCONFIG Database, and Define
the CMDB Database). Comment out the existing (default) entries and add the
required connection information. For example, for an Oracle database you make the
following edits: |
| |
|
# --------------------------
# ConfigCollector properties
# Define the ALERTDEFS Database
# Contains all Alert Threshold settings and overrides
#ConfigCollector.sl.rtview.sql.sqldb=ALERTDEFS sa - jdbc:hsqldb:hsql://localhost:9099/alertdefs
org.hsqldb.jdbcDriver - false false
ConfigCollector.sl.rtview.sql.sqldb=ALERTDEFS myusername mypassword
jdbc:oracle:thin:@myhost:9099:myinstance oracle.jdbc.driver.OracleDriver - false
false
…
# Define the RTVCONFIG Database
# Contains all CI Type definitions
#ConfigCollector.sl.rtview.sql.sqldb=RTVCONFIG sa - jdbc:hsqldb:hsql://localhost:9099/rtvconfig
org.hsqldb.jdbcDriver - false false
ConfigCollector.sl.rtview.sql.sqldb=RTVCONFIG myusername mypassword
jdbc:oracle:thin:@myhost:9099:myinstance oracle.jdbc.driver.OracleDriver - false
false
…
# Define the Default CMDB Database
# This is the database that is accessed and modified by the EM CMDB Admin page
#ConfigCollector.sl.rtview.sql.sqldb=RTVCMDB sa - jdbc:hsqldb:hsql://localhost:9099/rtvcmdb
org.hsqldb.jdbcDriver - false true
ConfigCollector.sl.rtview.sql.sqldb=RTVCMDB myusername mypassword
jdbc:oracle:thin:@myhost:9099:myinstance oracle.jdbc.driver.OracleDriver - false
false
… |
| |
|
| b. |
In the RTVHISTORY Database Connection
subsection under the ALERT MODULE PROPERTIES section, make the same edits as
in the previous step. Using our prior example: |
| |
|
# Historian
#AlertHistorian.sl.rtview.historian.driver=org.hsqldb.jdbcDriver
#AlertHistorian.sl.rtview.historian.url=jdbc:hsqldb:hsql://localhost:9099/rtvhistory
#AlertHistorian.sl.rtview.historian.username=sa
#AlertHistorian.sl.rtview.historian.password=
AlertHistorian.sl.rtview.historian.driver=oracle.jdbc.driver.OracleDriver
AlertHistorian.sl.rtview.historian.url=jdbc:oracle:thin:@myhost:9099:myinstance
AlertHistorian.sl.rtview.historian.username=myusername
AlertHistorian.sl.rtview.historian.password=mypassword
# RTVHISTORY Database Connection
#collector.sl.rtview.sql.sqldb=RTVHISTORY sa - jdbc:hsqldb:hsql://localhost:9099/rtvhistory
org.hsqldb.jdbcDriver - false true
collector.sl.rtview.sql.sqldb=RTVHISTORY myusername mypassword jdbc:oracle:thin:@myhost:9099:myinstance
oracle.jdbc.driver.OracleDriver - false false |
| |
|
| c. |
Edit the properties relative to each of the database
connections you just edited in the previous steps by replacing the following as
appropriate: |
| |
|
myusername - User name to enter into this database
when making a connection. |
| |
|
myhost - Full URL to use when connecting to
this database using the specified JDBC driver. |
| |
|
myinstance - Instance name of your database. |
| |
|
mypassword - Password to enter into this database
when making a connection. If there is no password, use “-“. See
Encrypt Password (next) to use an encrypted
password. |
| |
NOTE:
If you need to provide encrypted passwords, rather than expose server passwords,
use the “encode_string” utility as follows:
In an
initialized command window,
execute the following script where mypassword is your plain text
password. For example: encode_string sql mypassword.
You then receive an encrypted password for copying and pasting into the password
field. For example:
encrypted value:
013430135501346013310134901353013450134801334 |
| |
|
| |
Save the file. |
3. Manually create the tables needed for each
database connection. To create tables for your database, use the .sql
template files provided for each supported database platform, located in your
project directory/dbconfig
directory:
ALERTDEFS
create_common_alertdefs_tables_<db>.sql
RTVCONFIG, RTVCMDB, RTVHISTORY
create_<rtvcmbd|rtvconfig|rtvhistory>_tables_<db>.sql
where <db> ={db2, mysql, oracle, sqlserver, sybase}
NOTE: The standard SQL syntax is provided for
each database, but requirements can vary depending on database configuration. If
you require assistance, consult with your database administrator.
The most effective method to load the .sql files
to create the database tables depends on your database and how the database is
configured. Some possible mechanisms are:
Interactive SQL Tool
Some database applications provide an interface where you can directly type SQL
commands. Copy/paste the contents of the appropriate .sql file into this tool.
Import Interface
Some database applications allow you to specify a .sql file containing SQL
commands. You can use the .sql file for this purpose.
NOTE: Before loading the .sql file, you should
create the database and declare the database name in the command line of your
SQL client. For example, on MySQL 5.5 Command Line Client, to create the tables
for the Alert Settings you should first create the database:
create database myDBName;
before loading the .sql file:
mysql -u myusername -pmypassword myDBName <
create_common_alertdefs_tables_mysql.sql;
In some cases it might also be necessary to split
each of the table creation statements in the .sql file into individual files.
Third Party Application
If your database does not have either of the above two capabilities, a third
party tool can be used to enter SQL commands or import .sql files. Third party
tools are available for connecting to a variety of databases (RazorSQL,
SQLMaestro, Toad, for example).
You have finished configuring the databases on
the Central Servers.
Proceed to
Configure the Historian Database.
|
