Table
Objects
The Object Palette features
three types of table objects--standard table, rotated table and object grid--that
offer the ability to display large amounts of data. While most objects
are driven by a single variable, table objects are driven by one or two
dimensional arrays of data. Table objects are designed to display all the
information returned by a tabular element in your data attachment. The necessary number of columns and rows
are automatically created. Preset substitutions
are created based on your data attachment as well, which are passed into drill down displays.
|

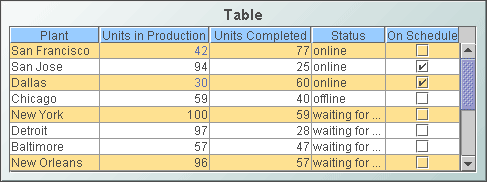

Standard Table
In a
standard table (class name: obj_table02), data
returned is displayed in a series of rows and columns. Row names and column
headers depend on your data attachment. If the table is not large enough
to display all of the data, scroll bars are automatically added.
Web Grid
The web grid is
an advanced HTML implementation of obj_table02 which
provides enhanced filtering (for the
Thin Client only). |
 |

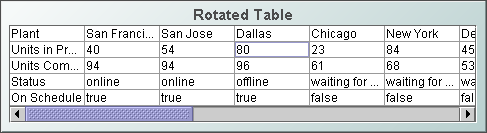

Rotated Table
The rotated table
(class name: obj_table03)
is a standard
table in which the rows and columns have been flipped. Row names are assigned
the name of the column displayed in that row.
|
 |

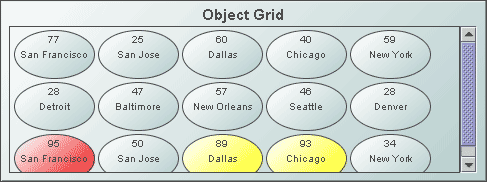

Object Grid
The object grid
(class name: obj_objectgrid)
displays returned data as multiple objects,
called icon objects, in a scrollable grid. Each icon object in the grid
is analogous to a row of data in the standard table. Icon objects display
the data using graphic attributes (e.g., color, dimension, orientation,
etc.).
|
 |
|
