From the Object Properties window you can access the Attach to TIBCO Hawk Data dialog, which is used to subscribe to a TIBCO Hawk Agent's microagent method. In the Attach to TIBCO Hawk Data dialog, you will specify which return field from the method will be used to update an object's dynamic properties. Once a property has been attached to a microagent method subscription, it receives continuous updates.

When an object property is attached to data, the Property Name and Value in the Object Properties window will be displayed in green. This indicates that editing values from the Object Properties window is no longer possible.  To remove the data attachment and resume editing capabilities in the Object Properties window, right-click on the Property Name and select Detach from TIBCO Hawk Data. You will recognize that an object property has been detached from the data source when the Property Name and Value are no longer green.

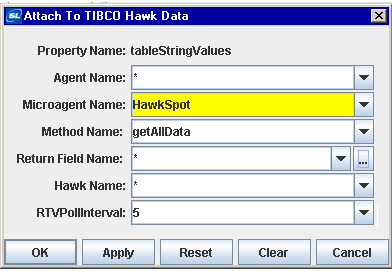

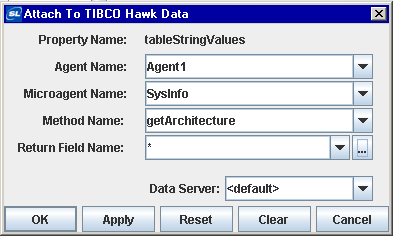

To bring up the Attach to TIBCO Hawk Data dialog, right-click on the Property Name from the Object Properties window and select Attach to Data>HAWK. The Attach to TIBCO Hawk Data dialog provides several drop down menus that allow you to specify information regarding a method subscription.


Agent Name	Name of the agent containing the microagent method to subscribe. To specify an agent on a specific connection, append the connection name enclosed in parentheses. For example: Agent1 - Agent1 on the default connection. Agent1(ConnectionA) - Agent1 on ConnectionA. Agent1(ConnectionB) - Agent1 on ConnectionB. To subscribe to all agents with the same name on all connections, append (*) to the Agent Name value.  For example: Agent1(*) - Agent1 on all connections. To specify all agents for a particular connection, use the TIBCO Hawk Agent Group that is automatically created for that connection. For example: *:ConnectionB - All agents from ConnectionB. The TIBCO Hawk Agent and Microagent Groups tab allows you to define Agent Groups and add them to the drop down menu in the Attach to Data dialog. See Special Values for more supported values for this field.
Microagent Name	Name of the microagent containing the method to subscribe. The TIBCO Hawk Agent and Microagent Groups tab allows you to define Microagent Groups and add them to the drop down menu in the Attach to Data dialog. See Special Values for more supported values for this field.
Method Name	Name of the method to subscribe.
Return Field Name	Name of the field in the method return data containing the value to use to update the object. See Special Values for more supported values for this field.
Method Argument(s)	Method argument fields (e.g., Return Field Name, TimeInterval, RTVPollInterval) depend on which microagent and method are selected.
Data Server	Select to read data through your configured Data Server and not directly from the TIBCO Hawk data source. Default - Select the default Data Server you configured in Application Options>Data Server. None - Bypass data being redirected through the specified data server(s) for this attachment and instead attach directly to the data source. Named Data Servers - Select a Named Data Server that you configured in Application Options>Data Server. Multi-Server Attachment - To configure multiple data servers, enter a semicolon (;) delimited list containing two or more Named Data Servers (e.g. ds101;ds102). Each name specified must correspond with a Named Data Server that you configured in Application Options>Data Server. It is also possible to specify __default and __none (e.g. __default;ds101;ds102). NOTE: The values __default and __none begin with two underscore characters. Alternatively, a value of * can be entered to specify all data servers, including __default and __none. When multiple data servers are specified, the data attachment will be directed to each data server in the list. For tabular data attachments, a column named DataServerName will be added as the first column of the table and contain the name of the server from which the data was received. A multi-server attachment will receive data independently from each of the servers it specifies, so in most cases it will be necessary to combine the tables received into a single table. This can be accomplished in two ways: 1) The multi-server attachment can be applied to a local cache that has the DataServerName column specified as an index column. The current table of that cache will contain the combination of the tables received from all servers. NOTE: It may also be necessary to configure cache row expiration settings to remove defunct rows. 2) The multi-server attachment can be applied as the Table argument of the RTView function named Combine Multi-Server Tables.

A Method Repository file is used to populate the initial values in the drop down menus for all fields when agents and microagents are not available. This makes it easy to create displays for agents and microagents when they are not online. See Application Options for information on how to create a Method Repository file.

As new agents and microagents come online, drop down menus are automatically updated. If a drop down menu does not contain the item you require, type your selection into the field.

The method argument fields that appear depend on the microagent and method that you select. Argument fields are labeled according to the selected method's requirements. If the method is not recognized, five generic argument fields are provided. NOTE: The argument RTVPollInterval is provided so that you can set a time interval for synchronous methods.

The following describes the significance of the Attach to TIBCO Hawk Data validation colors:


	Blue	Unknown	Entry was not found in the Method Repository, nor can it be confirmed against a live agent/microagent. When a microagent is unknown, the Method, Return Field, and Argument(s) fields are also unknown.
	Yellow	Offline	Entry was either found in the Method Repository or was previously available, but is not currently online. This applies to agents and microagents.
	White	Valid state	Entry is valid and was either found in the Method Repository or could be confirmed against a live agent/microagent.
	Red	Invalid state	Entry is not valid.
	Gray	Not Required	Field does not require a value. This applies to the Return Field for methods that do not have any returns.

Substitutions
Substitutions allow you to build open-ended displays in which data attachments depend on values defined at the time the display is run. Generic names for agents, such as $agent1 and $agent2, are used instead of values for specific agents. Later when the display is running, these generic values are defined by the actual names of specific agents, such as computer6 and computer11. In this way, a single display can be reused to show data from a number of different sources. For more information on creating displays using substitution values, see Substitutions.

RTViewDs

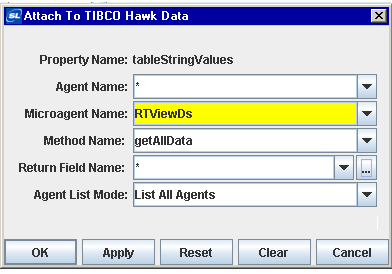

RTViewDs is a simulated microagent that allows you to call the following methods from RTView to get information that is not available via a microagent method regarding an agent. RTViewDs methods take one argument, Agent List Mode, which indicates whether to return information regarding agents that are offline.


The following describes RTViewDs methods:


getName	Returns name of specified agent or the value UNKNOWN if agent is inactive. This method has only one return field: Name.
getStatus	Returns status of specified agent (values: 1=agent is active, 0=agent is inactive). This method has only one return field: Status
getCluster	Returns cluster name of specified agent or the value UNKNOWN if agent is inactive. This method has only one return field: Cluster
getConnectionName	Returns the name of the connection for this agent or the value UNKNOWN if the agent is inactive. This method has only one return field: Connection.
getDsName	Returns name of specified agent including the connection name if it is not on the default connection, or the value UNKNOWN if agent is inactive. This method has only one return field: DsName
getAlert	Returns highest alert (values: 1,2,3,4=correspond to TIBCO Hawk Console API, 0=agent is inactive).  This method has only one return field: Alert
getAlertString	Returns highest alert according to TIBCO Hawk Console API or the value UNKNOWN if agent is inactive. This method has only one return field: AlertString
getAlertData	Returns information about an alert when the alert is posted.  By default, this method does not retrieve alerts posted prior to the data attachment or before the view is displayed. For information on displaying existing alerts, see Application Options. Return fields to choose from: Agent - name of the agent that posted the alert AlertID - ID of the alert AlertState-  rulebase state of the alert (values: 1,2,3,4= correspond to the TIBCO Hawk Console API). AlertString - rulebase state of the alert (values: ALERT-LOW, ALERT-MEDIUM, ALERT-HIGH correspond to the TIBCO Hawk Console API). RuleBase - rulebase that posted the alert Cleared - returns false if alert is active, returns true if alert is cleared Time - date and time alert was generated AlertText - alert text
getPlatform	Returns the platform the agent is running on or the value UNKNOWN if the agent is inactive. Return fields to choose from: Agent - name of the agent Architecture - platform architecture Name - name of the platform Version - version of the platform If no return field is selected, the method will return the platform as follows: Architecture:Name:Version
getIPAddress	Returns the IP address for the agent or UNKNOWN if the agent is inactive. This method has only one return field: IPAddress
getAllData	Returns all RTViewDs data. Return fields correspond to the methods listed above. Return fields to choose from: Alert AlertString Cluster Connection Name  DsName IPAddress Name Platform Status
getGroupData	Returns group information about a particular Agent. This is useful when caches are used to store data for applications that organize or aggregate Hawk Agent information using groups. Return fields to choose from: Agent - name of the agent GroupName - name of the group containing the agent ConnectionName - name of the connection for this agent DSName - name of the agent including the connection name if it is not on the default connection NOTE: Since an Agent may be in more than one group, a single Agent may show up multiple times (once for each group that contains it).
getAgentStatus	Used only for the purpose of debugging agent and subscription problems. NOTE: Because this method can cause performance issues, it must not be used in standard user displays, nor should a cache containing this information be deployed in a production environment. Returns the following columns containing information about the subscription: Display Name - The display name of the agent. Status - Alive indicates RTView received an onAgentAlive event for this agent that is currently active; Expired indicates RTView received an onAgentExpired event and has not yet received another onAgentAlive event; Not Discovered indicates RTView is configured for this agent but has not yet received an onAgentAlive event. onAgentAlive Time - The timestamp of the most recent onAgentAlive event for this agent. onAgentExpired Time - The timestamp of the most recent onAgentExpired event for this agent. onAgentExpired Count - The number of onAgentExpired events RTView has received for this agent since startup. Data Received Time - The last time RTView received data from this agent. This may be subscription data or alert data. To see values over time (rather than just the latest value) attach the method to a cache, set the indexColumnNames on the cache to Display Name and deselect the allowDuplicatesInHistoryFlag on the cache. This method ignores the Disable Data Caching application option and caches all of the data regardless of how that flag is configured.
getSubscriptionStatus	Used only for the purpose of debugging agent and subscription problems. NOTE: Because this method can cause performance issues, it must not be used in standard user displays, nor should a cache containing this information be deployed in a production environment. Returns the following columns containing information about the subscription: Agent - The display name of the agent. Key - The key used internally to track this subscription, containing the agent, microagent, method and listener information. Status - Pending indicates RTView queued but not yet processed the subscription request; Active indicates RTView processed the subscription; Cancelled indicates RTView cancelled the subscription. Request Time - The time this subscription was requested. Create Time - The time this subscription was created. Create Length - The amount of time, in milliseconds, it took the Hawk agent to respond to the subscription request. Queue Length - The amount of time, in milliseconds, this subscription waited in the queue before RTView requested it from the agent. Data Received Time - The last time RTView received data for this subscription. Cancel Time - The time this subscription was cancelled. Cancel Reason - The reason this subscription was cancelled. No Listeners indicates there are no more listeners for this subscription; Microagent Removed indicates the microagent is no longer available; Agent Connection indicates RTView received an onAgentExpired event for the agent. To see values over time (rather than just the latest value) attach the method to a cache, set the indexColumnNames on the cache to Key and deselect the allowDuplicatesInHistoryFlag on the cache. This method ignores the Disable Data Caching application option and caches all of the data regardless of how that flag is configured.

Select Columns
From the Attach to TIBCO Hawk Data dialog you can specify which method return columns to display in a table and in what order they will appear. To populate the listing of available method return columns, you must first select a valid microagent and a method.

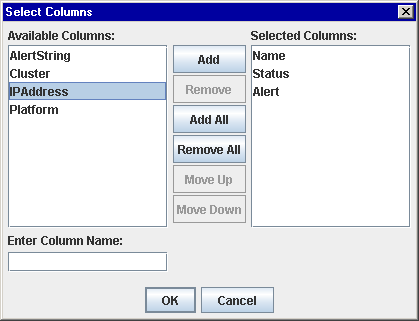

To bring up the Select Columns dialog, click on the ellipsis button  in the Return Field Name field (or right-click in the Return Field Name field and choose Select Columns). The dialog should contain a list of Available Columns that you can add to your table.

To add a column, select an item from the Available Columns list and click on the Add button. If the item you require is not listed, type your selection into the Enter Column Name field. Click the Remove button to delete an item previously added to the Selected Columns list. You can control the order of columns in a table by arranging the items in the Selected Columns list with the Move Up and Move Down buttons.

Validation colors indicate whether selected method return columns are valid. However if even one selected column is invalid, the Return Field Name field in the Attach to TIBCO Hawk Data dialog will register as an invalid entry. NOTE: Agent, Microagent and Method values must be valid in order to create a subscription.

If no data is available for a table row within a selected column, then the table cell will display one the following values: N/A, false, 0, or 0.0.


The following describes Attach to TIBCO Hawk Data dialog commands:


Command	Description
OK	Applies values and closes the dialog.
Apply	Applies values without closing the dialog.
Reset	Resets all fields to last values applied.
Clear	Clears all fields. Detaches object from data source (once Apply or OK is selected).
Cancel	Closes the dialog with last values applied.
