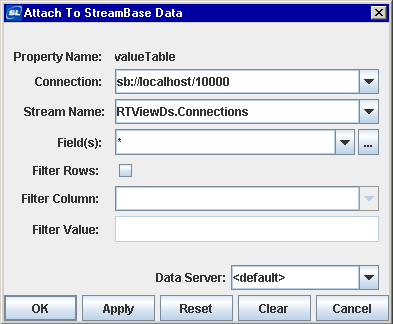

To bring up the Attach to StreamBase Data dialog, right-click on the Property Name (e.g., the value property or the valueTable property) from the Object Properties window and select Attach to Data>SB. This dialog is used to attach an object property to StreamBase monitoring metrics or stream content and display real-time results in an RTView display. Once an object property has been attached it receives continuous updates.

The Attach to StreamBase Data dialog provides several drop down menus that allow you to specify information regarding the tuples you retrieve. If the drop down menu does not contain the item you require, type your selection into the text field.



Connection	The StreamBase connection name. You may specify a connection on the StreamBase Connections of the Application Options dialog.  NOTE: If * is entered, data will be retrieved from all defined connections.
Stream Name	The name of the stream from which you want content. Choose either a Stream Name or RTViewDs. Available Stream Names are based on the Connection specified in the Application Options dialog. NOTE:  All returned rows of data are identified by both Connection and Stream Name. In the returned table, Connection names will appear in a column named conn added to each incoming tuple.	Streams	Returns a table with a single row containing the latest tuple data.
		History	Returns a table with one row for each tuple received. This table continuously grows to the maximum specified for History Depth in the Application Options dialog. Example: streamname_history
		History2	Returns a table containing one row for each tuple received up to that point in time. Does not continue updating as new tuples come in. Example: streamname_history2
Field(s)	If Stream, History or History2 is selected in the Stream Name field, the Field(s) field dropdown menu is populated with the following options. For RTViewDs options, see the RTViewDs table.
Filter Rows	Check box to indicate whether or not to filter the rows.
Filter Column	Name of the column field to use as a filter.
Filter Value	Value that the filter field must equal.
Data Server	Select to read data through your configured Data Server and not directly from the StreamBase data source. Default - Select the default Data Server you configured in Application Options>Data Server. None - Bypass data being redirected through the specified data server(s) for this attachment and instead attach directly to the data source. Named Data Servers - Select a Named Data Server that you configured in Application Options>Data Server.

Drop down menus populate based on connections added from the Application Options dialog or those typed directly into the Attach to StreamBase Data dialog.

When an object property has been attached to data, the Property Name and Value in the Object Properties window will be displayed in green. This indicates that editing values from the Object Properties window is no longer possible. To remove the data attachment and resume editing capabilities in the Object Properties window, right-click on the Property Name and select Detach from Data. You will recognize that an object property has been detached from the data source when the Property Name and Value are no longer green

Substitutions
The Substitutions feature allows you to build open-ended displays in which data attachments depend on values defined at the time the display is run. A generic stream name such as $stream is used instead of a specific stream name. Later when the display is running, this generic value is defined by the actual name of a specific stream, such as SalesInfo. In this way, a single display can be reused to show data from a number of different sources. For more information on creating displays using substitution values, see Substitutions.

RTViewDs
The following special values can be entered for the Stream Name field:


RTViewDs	Column Available	Description
RTViewDs.Connections	Connected	True / False. Indicates whether connected.
	Status	Status information for this connection.
	StatusFull	Status information for this connection.
	Stream Count	Count of active streams in a connection.
	URI	The connection name.
	Version	StreamBase client software version currently running.
RTViewDs.Streams	Connected	True if  the connection for this stream is connected.
	Last Tuple Time	The time RTView received the latest tuple on this stream.
	Stream	The name of the stream.
	Time Since Last Tuple	The amount of time in seconds that has passed since RTView received a tuple on this stream.
	Tuples Received	The total number of tuples received on this stream since RTView started. This does not include history.
	Tuples Total	The total number of tuples received on this stream since RTView started plus the total number of tuples from history.
	URI	The URI for the connection for this stream.
RTViewDs.OperatorInfo	Timestamp	The time that the Snapshot for this data was taken.
	URI	The URI for the connection for this monitor information.
	Name	The name of the operator.
	InputPortCount	The number of input ports on this operator.
	InputTuplesDequeuedDelta	The number of input tuples consumed by this operator since the previous Snapshot. If this number is less than the number of tuples enqueued to the input stream, then tuples are being queued up faster than the operator can consume them.
	InputTuplesDequeuedTotal	The total number of input tuples consumed by this operator since the StreamBase Server was started. If this number is less than the number of tuples enqueued to the input stream, then tuples are being queued up faster than the operator can consume them.
	InputTuplesEnqueuedDelta	The number of tuples enqueued on this operator's input streams since the previous Snapshot.
	InputTuplesEnqueuedTotal	The total number of input tuples enqueued on this operator's input streams since the StreamBase Server was started.
	OutputPortCount	The number of output ports on this operator.
	OutputTuplesEnqueuedDelta	The number of output tuples produced by this operator since the previous Snapshot.
	OutputTuplesEnqueuedTotal	The total number of output tuples produced by this operator since the StreamBase Server was started.
	PercentUsage	The number of profiler hits divided by the total profiler hits.
	ProfilerHits	The number of miniticks used by the operator, as defined by profiler samples.
	Size	The size of the operator. The definition of "size" varies by operator.
	Status	The status of the operator. When blank, this returns an empty string.
	TotalProfilerHits	The number of miniticks used by all operators in the contained ProfileState. The percentage usage is then profiler hits/total profiler hits.
RTViewDs.ThreadInfo	Timestamp	The time that the Snapshot for this data was taken.
	URI	The URI for the connection for this monitor information.
	Name	The name of the thread.
	PercentCPU	The percent of CPU used by this thread, in microseconds.
	PercentSystem	The percent of system CPU time used by this thread, in microseconds.
	PercentUser	The percent of user CPU time used by this thread, in microseconds.
	SystemTimeDelta	The system time spent by thread since the last Snapshot, in microseconds.
	SystemTimeTotal	The system time spent by this thread since the StreamBase Server started, in microseconds.
	UserTimeDelta	The user time spent since the last Snapshot, in microseconds.
	UserTimeTotal	The user time spent by thread since the StreamBase Server started, in microseconds.
RTViewDs.SystemInfo	DequeueClientCount	The current number of dequeueing clients.
	FreeMemory	The amount of free memory in the StreamBase Server process, in bytes.
	MaxMemory	The maximum amount of memory which the StreamBase Server process is allowed to allocate, in bytes.
	Timestamp	The time that the Snapshot for this data was taken.
	URI	The URI for the connection for this monitor information.
	ProcessSize	The amount of memory used the StreamBase Server process, in Megabytes.
	TimeRunning	The amount of time that the StreamBase Server has been running, in seconds.
	TotalKB	The total amount of memory, in kilobytes, available for use in the StreamBase server process.
	TotalMemory	The total amount of memory, in bytes, available for use in the StreamBase Server process.
	FreeKB	The amount of free memory, in kilobytes, in the StreamBase server process.
	maxKB	The maximum amount of memory, in kilobytes, which the StreamBase server process is allowed to allocate.
	numDequeue	The current number of dequeuing clients.
	UsedMemory	The total amount of memory currently in use in the StreamBase Server process, in bytes.

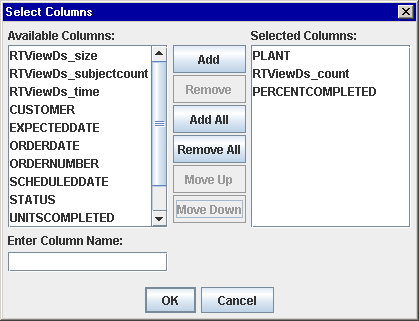

To bring up the Select Columns dialog, click on the ellipse button in the Field(s) field (or right-click in the Field(s) field and click Select Columns). The dialog contains a list of Available Columns that you can add to your table.

To add a field, select an item from the Available Columns list and click on the Add button. If the item you require is not listed, type your selection into the Enter Column Name field. Click the Remove button to delete an item previously added to the Selected Columns list. You can control the order of fields in a table by arranging the items in the Selected Columns list with the Move Up and Move Down buttons.

If no data is available for a table row within a selected column, the table cell will display one of the following values: N/A, false, 0, or 0.0.


The following describes Attach to StreamBase Data dialog commands:


Command	Description
OK	Applies values and closes the dialog.
Apply	Applies values without closing the dialog.
Reset	Resets all fields to last values applied.
Clear	Clears all fields. Detaches object from data source (once Apply or OK is selected).
Cancel	Closes the dialog with last values applied.
