Application
Options
Style Sheet

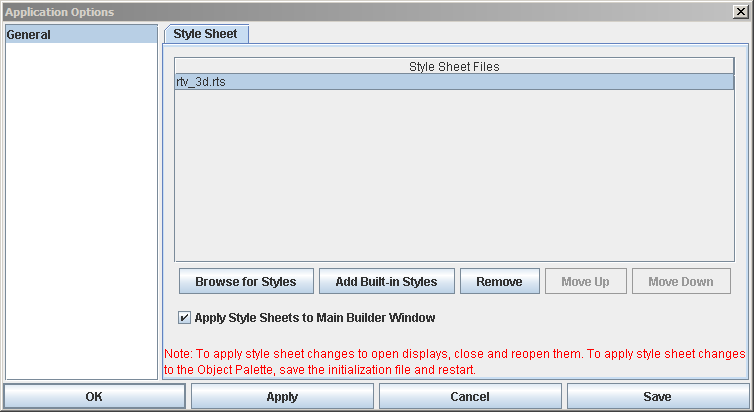

Select Tools>Options>General>Style
Sheet to add, remove or reorder style sheets applied to your applications. It is also possible to
apply
specific style sheets to a single display. NOTE: In the Display Builder, style values are
also applied to the Object Palette as well as objects added from the Display
Builder toolbar.
Application level style sheets are read once, at
startup, and applied when display (.rtv) files are opened. If you edit a style
sheet, then you need to restart to see those changes. If you add, remove or
re-order style sheets, changes will not be applied to open displays. To see
these changes, close and reopen your displays. To see changes in the Object
Palette you must always restart. NOTE: In the following cases, style changes
are applied immediately:
- Objects added from the Display Builder toolbar
- Objects added to Object Grids
- Objects added to Composites
| Add |
Browse for Styles
|
Locate a specific
style sheet (.rts) file. |
| Add Built-in Style
|
Choose from available
built-in style sheets.
|
| Remove |
Select a
style sheet (.rts) file from the
Style Sheet Files list and click to remove. |
| Move Up |
Re-order the Style
Sheet Files list. NOTE: When multiple style sheet (.rts) files are applied, they are
processed in the order specified. Therefore if the same property is specified in
multiple style sheets, the value in the last style sheet applied will take precedence. |
| Move Down |
| Apply Style Sheets to Main
Builder Window |
If selected, style sheets
are applied to the main Display Builder window (a.k.a Working Area) and in
the Object Palette. To prevent display (.rtv) files from being saved with
unwanted style values applied you can choose to deselect this option. |
|
