High Availability Deployment

Display Viewer Application using Data Server(s) via Direct Socket

This deployment is chosen when it is more desirable to have a Java application to view Enterprise RTView dashboards as opposed to a browser-based interface. Direct socket connections are used when there are no firewall issues between clients and the Data Server component.

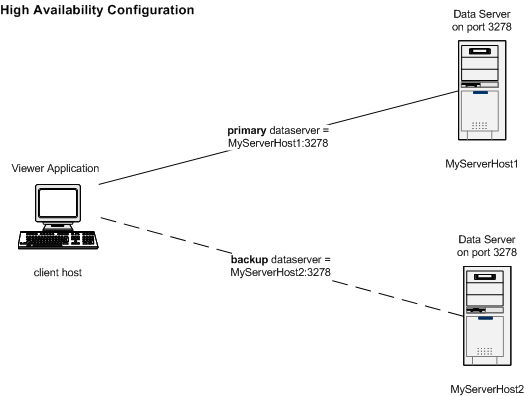

In this high availability configuration, as shown below, if the Data Server connection is lost or unavailable, the Display Viewer Application will switch to a backup server. All backup servers should have access to the same data sources and configuration files.

Primary and backup Data Servers can be configured in the Display Builder, by selecting the Data Server tab in the Application Options dialog, or with the Configuration Utility. See the High Availability Data Servers section for details.
