Oracle® Coherence Monitor - Architecture Diagrams

The following diagrams illustrate the architecture of different deployment options for the Oracle Coherence Monitor.

Figure 1: Running the Oracle Coherence Monitor using a remote JMX port.

Figure 2: Running the Oracle Coherence Monitor as a Management Node.

Figure 3: Running the Data Server using a remote JMX port to collect data and pass it to the Oracle Coherence Monitor.

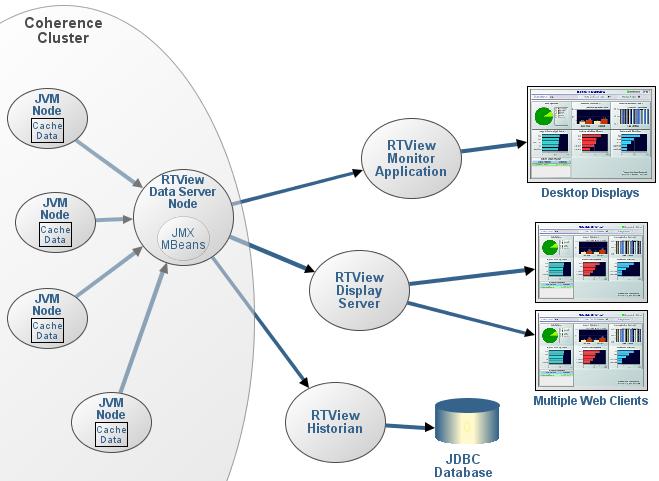

Figure 4: Running the Data Server as a Management Node to collect data and pass it to the Oracle Coherence Monitor.
