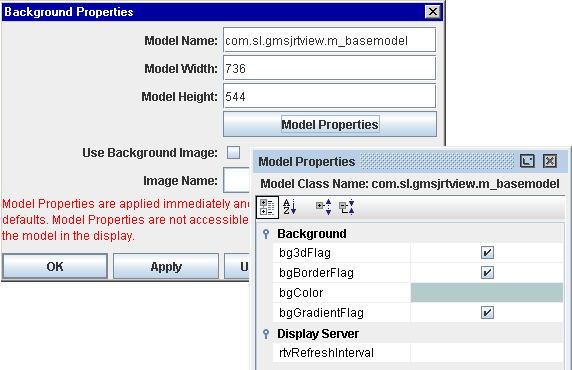

You can either use a model file or a bitmap image (GIF, JPEG or PNG) as the display background. Settings shown below are default settings. Select File>Background Properties to modify the following settings:


Model Name	Current background model. Default model is com.sl.gmsjrtview.m_basemodel. NOTE: SL-GMS J/Developer and J/Net customers may import subclasses of GmsModelCode and access renamed variables via the Model Properties dialog.
Model Width/Height	Model width and height in pixels. If you set the model height to a size larger than the display area, a dialog will appear to confirm whether to add space to the top or bottom of the display area. If you decrease the size of the model height, a dialog will appear asking you whether to take space from the top or the bottom of the display area. In addition, if you decrease the model size and the objects no longer fit within the display area, you will be asked to confirm this in a separate dialog.  NOTE: Model Width/Height options are disabled if you are not using the default model com.sl.gmsjrtview.m_basemodel.
Model Properties	The Model Properties dialog lists attributes of the background model and provides the ability to edit property values. Model properties are applied immediately and cannot be cancelled or reverted to defaults. If the Model Name does not match the model in the display, the Model Properties dialog is not accessible. NOTE: See the Object Properties section for details on editing property values. If you are using the default model com.sl.gmsjrtview.m_basemodel the Model Properties are: Background: bg3dFlag - Control visibility of bevel on background. bgBorderFlag - Control visibility of black outline on background. bgColor - Select a background color. Click in Property Value field, select the  button and choose a color from the palette. bgGradientFlag - Control gradient fill on background. Display Server: rtvRefreshInterval: Specify the interval (in seconds) to refresh a display in the client browser. Minimum interval is 5 seconds. If left blank, the interval defined in the rtvdisplay.properties file will be used. Set to 0 if you do not want displays automatically refreshed. It is also possible to enter a substitution or attach rtvRefreshInterval to data. NOTE: The refresh rate specified in the URL or DIV tag used to open a display will override the rtvRefreshInterval property.
Use Background Image	Select this checkbox to specify a .gif, .jpg or .png file as the background image. If you select to use a background image, all background model properties will be disabled.
Image Name	Select the name of the file (.gif, .jpg or .png) to use as a background image. The drop down menu contains the names of image files located in the current directory, as well as image files located in first level of subdirectories. If an image is not listed, enter the name (including relative path) of the file.

The following describes the Background Properties dialog commands:


Command	Description
OK	Applies values and closes the dialog.
Apply	Applies values without closing the dialog.
Use Defaults	Resets all fields to default values (once Apply or OK is selected).
Cancel	Closes the dialog with last values applied.
