NOTE: The TIBCO Rendezvous data source may not be licensed in your Enterprise RTView installation.

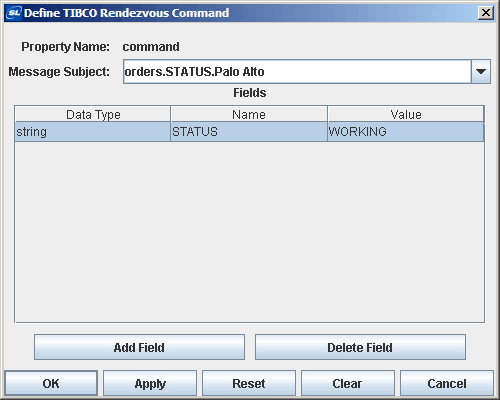

From the Object Properties window you can access the Define TIBCO Rendezvous Command dialog. This dialog is used to assign a TIBCO Rendezvous message to an object's command property, giving you the ability to send messages from within an Enterprise RTView display. If you execute a TIBCO Rendezvous command from a Thin Client deployment or from one of the Served Data deployments (Application or Rich Client), the command will execute on the server.

To open the Define TIBCO Rendezvous Command dialog, right-click on the appropriate command property in the Object Properties window and select Define Command>RV. The information supplied assigns a message to the command property. See the Object Commands section for information on how to execute a command.



Message Subject	Enter a Message Subject name.
Fields	Data Type - Select a data type for this field. Data types are converted to TibrvMsg data types as follows: string - TibrvMsg.STRING integer - TibrvMsg.I32 long - TibrvMsg.I64 float - TibrvMsg.F32 double - TibrvMsg.F64 boolean - TibrvMsg.BOOL Name - Specify a name for this field. Value - Specify a value for this field.
Add Field	Add a field.
Delete Field	Delete the selected field.

A Message Repository file can be used to populate the initial values of drop down menus for all fields. See Application Options for information on how to create a Message Repository file. Otherwise, drop down menus populate based on message subjects added from the Application Options dialog or those typed directly into the Attach to Data dialog. Message subjects will not be added to drop down menus until at least one TIBCO Rendezvous message with that subject has been received by Enterprise RTView.

Validation Colors
Fields in the dialog change colors according to the information entered. These colors indicate whether or not information is valid. Information is validated against the Message Repository file, message subjects added from Application Options dialog, or those typed directly into the Attach to Data dialog. Message subjects will not be validated until at least one TIBCO Rendezvous message with that subject has been received by Enterprise RTView.  NOTE: Some subjects using wild card characters are not validated at this time.

The following describes the significance of validation colors:


	Blue	Unknown	Entry is not recognized. When a Subject is unknown, the Message Field, Filter Field Name, and Filter Field Value are also unknown.
	White	Valid state	Entry is valid and was found.
	Red	Invalid state	Entry is not valid.

Once all of the required fields are complete, click OK to close the dialog and set a value for the object's command property.

Substitutions
The Substitutions feature allows you to build open-ended displays in which commands depend on values defined at the time the display is run. A generic Message Subject such as $subject is used instead of a specific message. Later when the display is running, this generic value is defined by the actual name of a specific message, such as orders.STATUS.London. In this way, a single display can be reused to send a number of different messages. For more information on creating displays using substitution values, see Substitutions.

Special Values


$value

When an actionCommand is executed $value is replaced with the value from the control. This value may be used in any field in the Define TIBCO Rendezvous Command dialog. NOTE: This value may only only be used for Action Commands.

The following describes Define TIBCO Rendezvous Command dialog commands:


Command	Description
OK	Applies values and closes the dialog.
Apply	Applies values without closing the dialog.
Reset	Resets all fields to last values applied.
Clear	Clears all fields. Detaches object from assigned message subject (once Apply or OK is selected).
Cancel	Closes the dialog with last values applied.
