RTView KM Defs

This display shows the Key Metrics definitions for all CI Types.



Title Bar:

Indicators and functionality might include the following:

arrow_previous_disp00802.gif arrow_up_level00803.gif Open the previous and upper display. dropdown00804.gif and convenience_button00805.gif navigate to displays commonly accessed from this display.

datetime00806.gif The current date and time. When the time is incorrect, this might indicate that RTView stopped running. When the time is correct and the Data OK indicator is green, this is a strong indication that the platform is receiving current and valid data.

ci_count_label00807.gif The number of items in the display.

dataok00808.gif The data connection state. Red indicates the data source is disconnected (for example, the Data Server is not receiving data, or the Display Server is not receiving data from the Data Server). Green indicates the data source is connected.

open_alerts_table00809.gif Open the Alert Views - RTView Alerts Table display.

new_disp00810.gif Open an instance of this display in a new window.

help00811.gif Open the online help page for this display.

Fields and Data

This display includes:

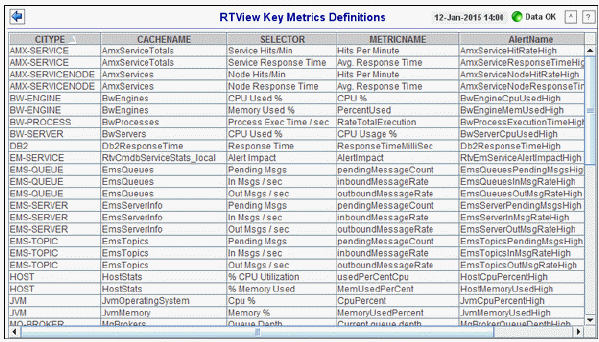

RTView Key Metrics Definitions

This table provides Key Metrics definitions for all CI Types.





CIType

The component type.





CACHENAME

The name of the cache that contains the Key Metric.





SELECTOR

The name used for this Key Metric in the Metric Name column of Key Metric displays.





METRICNAME

The name of the cache column that contains this Key Metric.





ALERTNAME

The name of the alert associated with this Key Metric. When blank, the Key Metric is not configured for inclusion in Key Metric displays.





CalcMode

The calculation used for the Threshold % value. The base value is calculated as the percent of the Key Metric value between 0 and the ALARMLEVEL of the associated alert. If the CalcMode is blank, this value is used. If the CalcMode is:

  • exp, the value is adjusted so that lower values are diminished. Typically, this is used for memory metrics.

  • inverse, the value is calculated in reverse of the standard thresholds. This is used when the associated alert is a low threshold alert.

  • log, a logarithmic algorithm is applied.





Level

The Key Metric level. Level 0 KMs are always displayed. Level 1 KMs are displayed is Show More Metrics is selected.
